کنترل کننده هوشمند 8 کاناله 10 آمپر پرده و روشنایی ABB

مشخصات فنی محصول:

Extended Product Type SAH/S8.10.7.1
Product ID 2CDG110247R0011
EAN 4016779066815

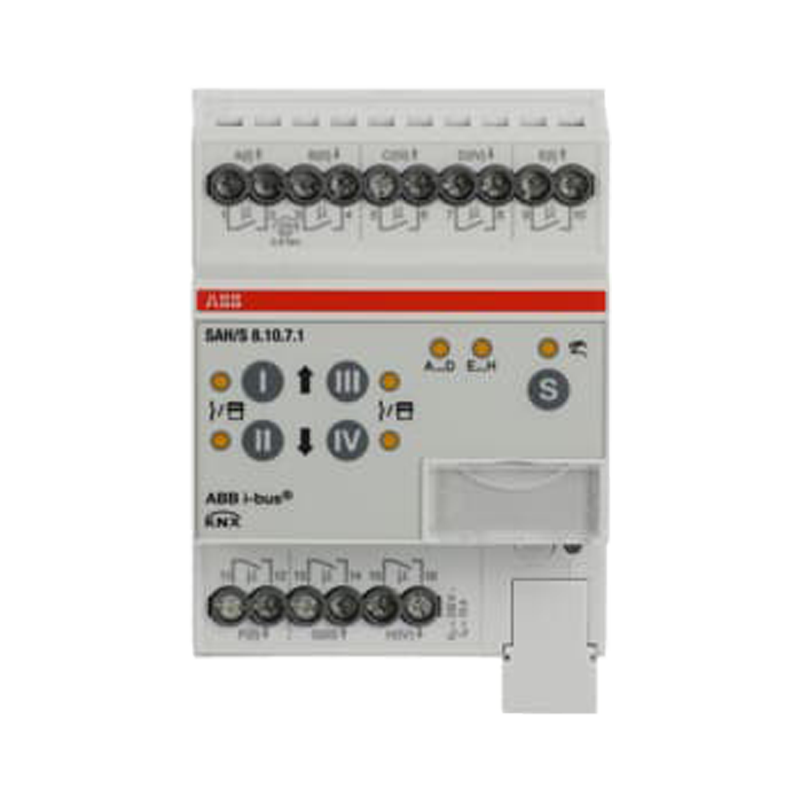

Catalog Description SAH/S8.10.7.1 Switch/Shutter Actuator, 8-fold, 10 A, MDRC
Long Description
The compact 10 A combi switch actuator has 8 independent switching relays. The
outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in
pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically
interlocking). The device features a manual operation, which can also be disabled. Via
the manual operation the outputs can be operated manually and the switching or
driving status is displayed. The device is powered by KNX and requires no additional
power supply.
General Information
PRODUCT-DETAILS
Installation
Instructions and 2CDG941211P0002
Manuals
Wiring Diagram 9AKK108464A0315
