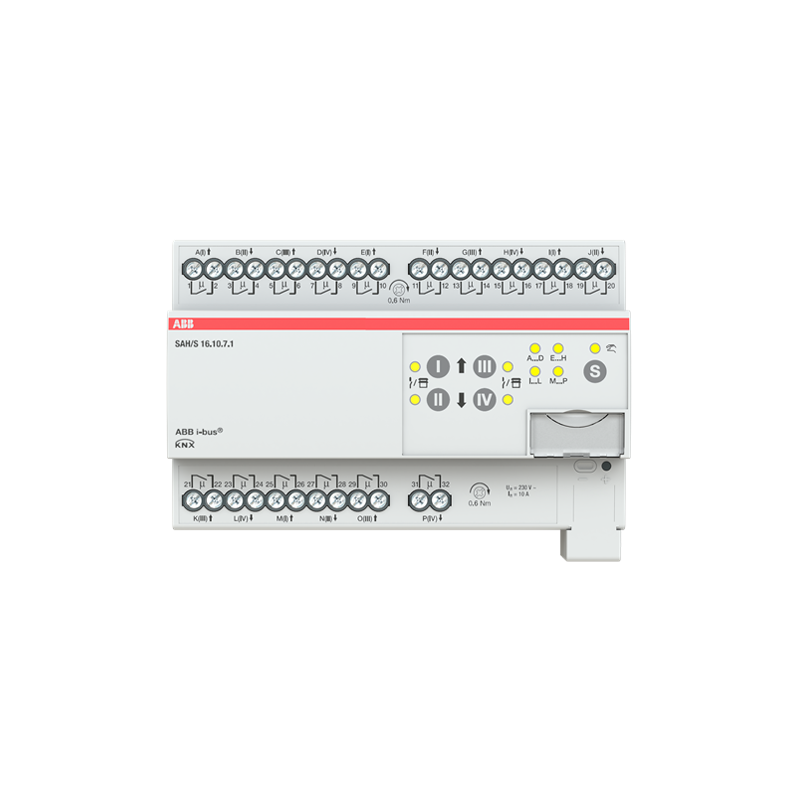

کنترل کننده هوشمند پرده و روشنایی 16 کاناله 10 آمپر ABB

Device Dimensions 90 × 140 × 63.5 mm (H x W x D)
Mounting width in space units 8 modules, 17.5 mm each
Weight 0.5 kg
Mounting position Any
Mounting variant 35 mm mounting rail
Design ProM
Degree of protection IP 20
Protection class II
Overvoltage category III
Pollution degree 2
Materials Housing Polycarbonate, Makrolon FR6002, halogen free
Material note Fire classification Flammability V-0
Electronics Rated voltage, bus 30 V DC
Voltage range, bus 21 … 31 V DC
Current consumption, bus < 12 mA
Maximum current, device 16 x 10 A
Power loss, device ≤ 6 W
Power loss, bus ≤ 0.25 W
KNX safety extra low voltage SELV
Connections Connection type, KNX bus Plug-in terminal
Cable diameter, KNX bus 0.6 … 0.8 mm, solid
Connection type, load circuit Screw terminal with universal head (PZ 1)
Pitch 6.35 mm
Tightening torque, screw terminals 0.5 … 0.6 Nm
Conductor cross-section, flexible 1 × (0.2 … 4 mm²) / 2 × (0.2 … 2.5 mm²)
Conductor cross section, rigid 1 × (0.2 … 6 mm²) / 2 × (0.2 … 4 mm²)
Conductor cross section with wire end ferrule without
plastic sleeve
1 × (0.25 … 2.5 mm²)
Conductor cross section with wire end ferrule with
plastic sleeve
1 × (0.25 … 4 mm²)
Conductor cross section with TWIN wire end ferrule 1 × (0.5 … 2.5 mm²)
Length, wire end ferrule contact pin ≥ 10 mm
Certificates and declarations Declaration of conformity CE → 2CDK505208D2701
Ambient conditions Operation -5 … +45 °C
Transport -25 … +70 °C
Storage -25 … +55 °C
Humidity ≤ 95 %
Condensation allowed No
Atmospheric pressure ≥ 80 kPa (corresponds to air pressure at 2,000 m above sea level)
