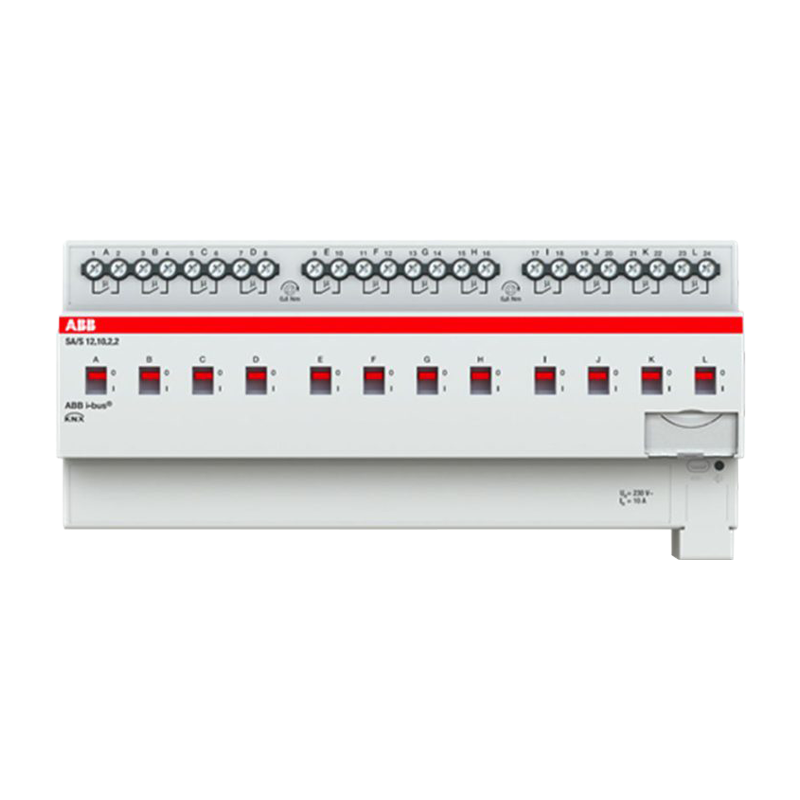

کنترل کننده هوشمند سوئیچ 12 کاناله 10 آمپر با قابلیت کنترل دستی ABB

مشخصات فنی محصول:

Extended Product Type SA/S12.10.2.2
Product ID 2CDG110260R0011
EAN 4016779066617
Catalog Description SA/S12.10.2.2 Switch Actuator, 12-fold, 10 A, MDRC
Long Description
The switch actuator uses potential free contacts to switch 12 independent electrical
loads via the ABB i-bus® KNX. The device features a manual operation and displaying
of the switching state of the outputs. The 10 A device is especially suited for loads
with high surge currents e.g. flourescent lighting acc. EN 60669. The device is powered
by KNX and requires no additional power supply.
General Information
PRODUCT-DETAILS
Ordering
EAN 4016779066617
Customs Tariff Number 85371091
Minimum Order Quantity 1 piece
E-Number (Switzerland) 405 663 125
E-Number (Finland) 2814695
E-Number (Sweden) 1739946
Dimensions
Product Net Depth / 63.5 mm
Length
Product Net Height 90 mm
Product Net Width 210 mm
Product Net Weight 0.608 kg
Container Information
Package Level 1 Units box 1 piece
Package Level 1 EAN 4016779066617
Package Level 1 Depth / 256 mm
Length
Package Level 1 Height 106 mm
Package Level 1 Width 125 mm
Package Level 1 Gross 0.718 kg
Weight
Technical
Compatible Bus Systems KNX (TP)
Degree of Protection IP20
Mounting Type DIN-Rail
Width in Number of 12
Modular Spacings
Certificates and Declarations (Document Number)
CB Certificate 9AKK107991A3224
Data Sheet, Technical 2CDC505191D0211
Information
Declaration of 2CDK505260D2701
Conformity – CE
Instructions and 2CDG941214P0001
Manuals
RoHS Information 2CDK505260D2701
Environmental
RoHS Status Following EU Directive 2011/65/EU
Classifications
ETIM 7 EC001097 – Switch actuator for bus system
ETIM 8 EC001097 – Switch actuator for bus system
eClass V11.0 : 27143125
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC 31251516
IDEA Granular Category 3268 >> Switch actuator
