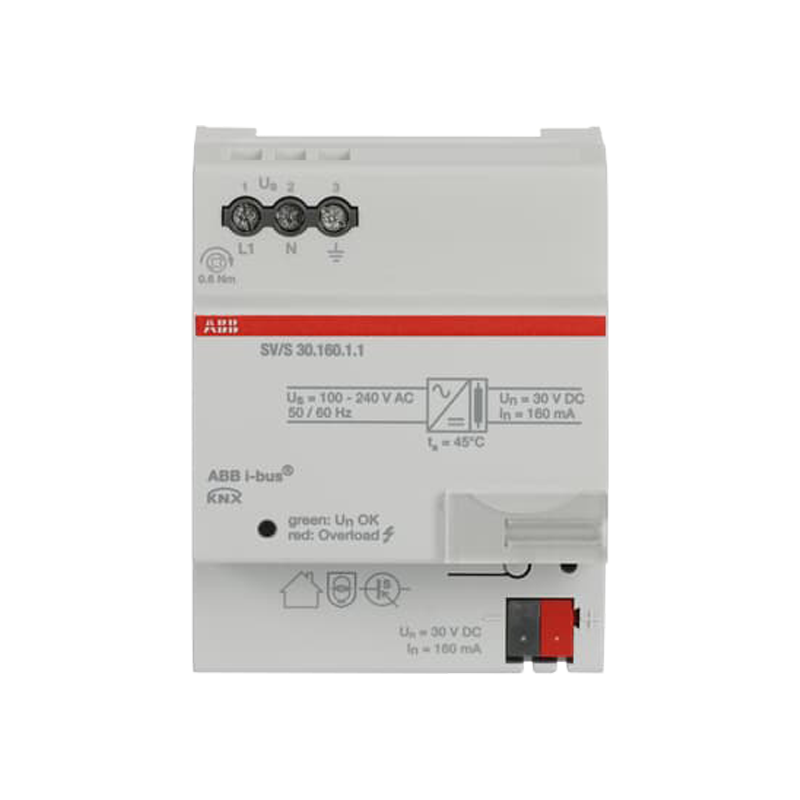

منبع تغذيه 160 ميلی آمپر ABB

مشخصات فنی محصول:

Technical data
Supply Supply voltage Us 100 – 240 V AC, 50/60 Hz
(85…265 V AC)
Power consumption
– SV/S 30.160.1.1
– SV/S 30.320.1.1
– SV/S 30.640.3.1
Normal operation
6.6 W
12.5 W
24 W
Maximum
21 W
30 W
55 W
Power loss
– SV/S 30.160.1.1
– SV/S 30.320.1.1
– SV/S 30.640.3.1
Normal operation
1.8
2.5 W
4 W
Maximum
4.4
6 W
9 W
Outputs KNX voltage output I1
– Rated voltage UN
– Minimum distance between
2 SV/S in one line
1 line with integrated choke
30 V DC +1/-2 V, SELV
200 m (KNX bus line)
Voltage output I2
(SV/S 30.640.3.1 only)
– Rated voltage UN
without choke
30 V DC +1/-1 V, SELV
The voltage output without choke may
only be used to power an additional bus
line in combination with a separate choke.
Current
– SV/S 30.160.1.1
– SV/S 30.320.1.1
– SV/S 30.640.3.1
(total current I1 and I2)
Rated current IN
160 mA
320 mA
640 mA
Current
– SV/S 30.160.1.1
– SV/S 30.320.1.1
– SV/S 30.640.3.1
(total current I1 and I2)
Overload current IOvl
0.3 A
0.5 A
0.9 A
Current
– SV/S 30.160.1.1
– SV/S 30.320.1.1
– SV/S 30.640.3.1
(total current I1 and I2)
Short-circuit current ISc
0.5 A
0.8 A
1.4 A
Power failure buffering time 200 ms
Connections KNX Bus connection terminal
Mains voltage input Screw terminal
0.2…2.5 mm2 fine-strand
0.2…4 mm2
solid
Tightening torque Maximum 0.6 Nm
Operating and display elements LED status (two-colored green/red) Green: I < IOvl
Red: overload.
Red, flashing: short-circuit
