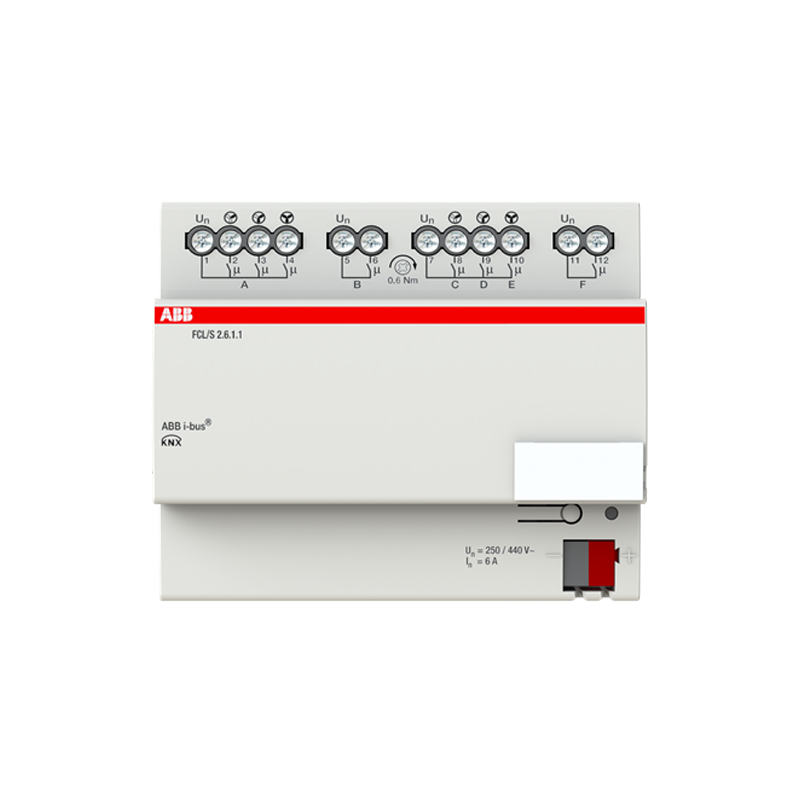

کنترل کننده هوشمند فن کوئل 2 کاناله ABB

مشخصات فنی محصول:

Power supply KNX bus voltage
Current consumption, bus
Power consumption
21…32 V DC
< 12 mA
maximal 250 mW
Rated output value FCL/S Type
Number
Un rated voltage
In rated current (per output)
Leakage loss per device at max. load
1.6.1.1 2.6.1.1
4 8
250/440 V AC (50/60 Hz)
6 A 6 A
1.5 W 2.0 W
Output switching current AC32) operation (cos ϕ = 0.45)
To EN 60 947-4-1
AC32) operation (cos ϕ = 0.8)
To EN 60 947-4-1
Fluorescent lighting load to EN 60 669-1
Minimum switching capacity
6 A/230 V AC
6 A/230 V AC
6 A/250 V AC (35 mF)1)
20 mA/5 V AC
10 mA/12 V AC
7 mA/24 V AC
Output service life Mechanical service life
Electronic endurance
to IEC 60 947-4-1
AC12) (240 V/cos ϕ = 0.8)
AC32) (240V/cos ϕ = 0.45)
AC5a2) (240V/cos ϕ = 0.45)
> 107
> 105
> 1.5 x 104
> 1.5 x 104
