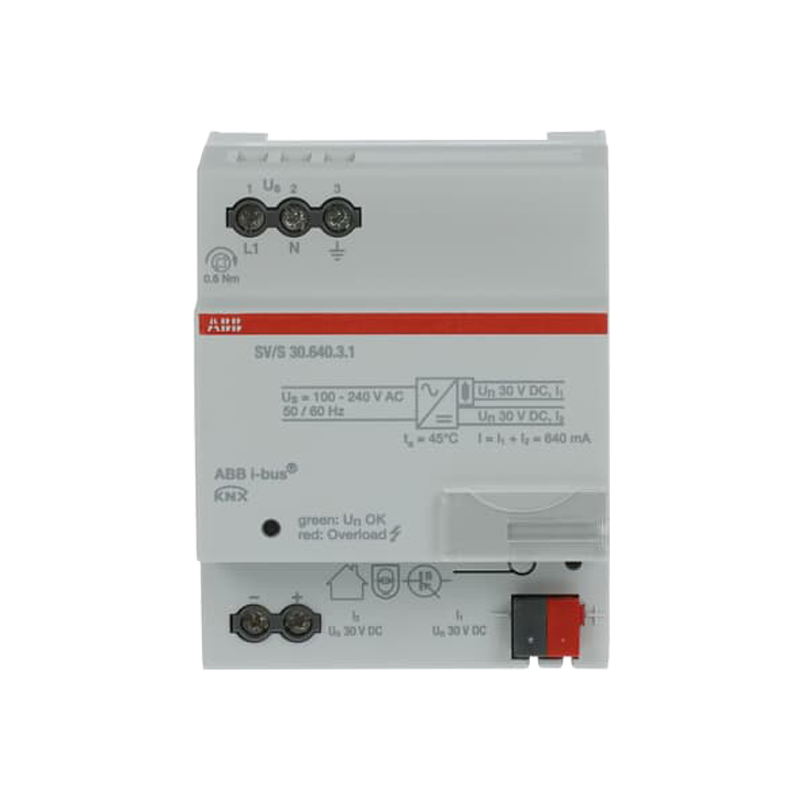

منبع تغذیه 640 میلی آمپر ABB

مشخصات فنی محصول:

General Information

Extended Product Type SV/S 30.640.3.1
Product ID 2CDG110167R0011
EAN 4016779906210
Catalog Description SV/S30.640.3.1 Power Supply, 640 mA, MDRC
Long Description
KNX power supplies 640 mA generate and monitor the KNX system voltage (SELV). The
bus line is decoupled from the power supply by an integrated choke. The voltage output is
short-circuit and overload protected. The two-color LED indicates device output status.
Device type SV/S 30.640.3.1 has an additional 30 V DC short-circuit and overload protected
voltage output that can be used to power an additional bus line (in combination with a
separate choke). With two-coloured status indicator and wide range input from 85…265 V
AC, 50/60 Hz.

Ordering
EAN 4016779906210
Customs Tariff Number 85044090
Minimum Order Quantity 1 piece
E-Number (Switzerland) 405800615
E-Number (Finland) 2815463
E-Number (Sweden) 1738579
Dimensions
Product Net Depth / 64.5 mm

Length
Product Net Height 90 mm
Product Net Width 72 mm
Product Net Weight 0.26 kg
Container Information
Package Level 1 Units box 1 piece
Package Level 1 EAN 4016779906210
Package Level 1 Depth / 77 mm
Length
Package Level 1 Height 65 mm
Package Level 1 Width 93 mm
Package Level 1 Gross 0.3 kg
Weight
Technical
Compatible Bus Systems KNX (TP)
Degree of Protection IP20
Mounting Type DIN-rail
Width in Number of 4
Modular Spacings
Certificates and Declarations (Document Number)
Data Sheet, Technical 2CDC501067D0201
Information
Instructions and Manuals 2CDG941137P0003
Declaration of Conformity 2CDK501055D2701
– CE
RoHS Information 2CDK501055D2701
Environmental
RoHS Status Following EU Directive 2011/65/EU
Classifications
ETIM 7 EC000675 – Power supply for bus system
ETIM 8 EC000675 – Power supply for bus system
eClass V11.0 : 27143114
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC 39121004
IDEA Granular Category 4127 >> Power supply units
Code (IGCC)
